Bộ sản phẩm bao gồm:

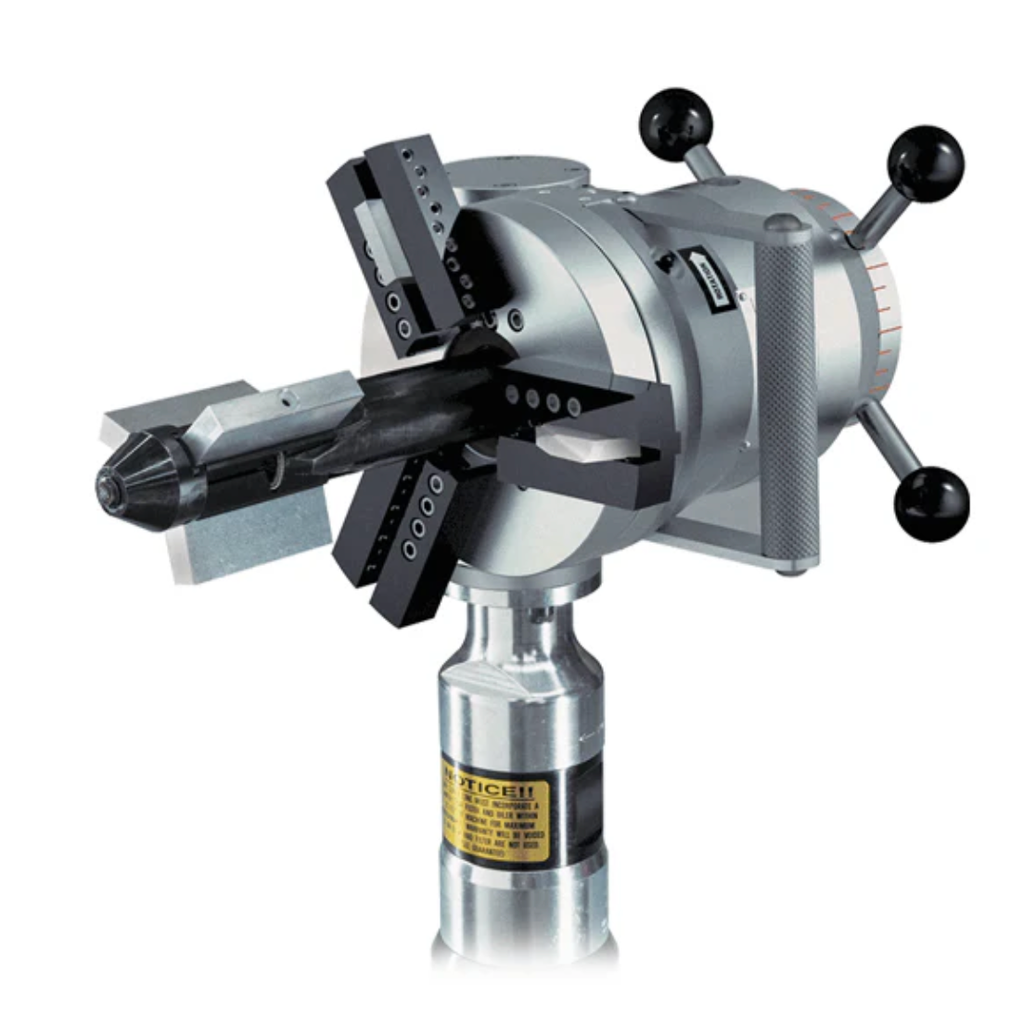

- Bộ phận lắp ráp Model 208B
- Bộ phận giá đỡ dụng cụ
- Bộ phận động cơ khí nén
- Bộ phận trục chính
- Bộ kẹp hàm
- Bộ dụng cụ cờ lê
- Hộp đựng
- Sách hướng dẫn sử dụng
- Hộp chứa khí nén
Technical Specifications
| Property | Inches | Metric |
|---|---|---|
| ID Mounting Range 2" - XX Mandrel (optional) Standard Mandrel | *1.503" - 1.650" 1.630" - 8.870" | *(38.1 mm - 41.9 mm) (41.4 mm - 225.3 mm) |
| OD Machining (max OD) | 8.630" | (219.2 mm) |
| Counterboring Range | 2.000" - 8.330" | (50.8 mm - 211.6 mm) |
| ID Chamfering Range | 2.000" - 8.160" | (50.8 mm - 8.160 mm) |
| Wall Thickness (max) Air Electric Hydraulic | **.875" **.438" **.875" | **(22.2 mm) **(11.1 mm) **(22.2 mm) |
| Axial Feed Travel | 2.000" | (50.8 mm) |
| Feed Rate: (Per Revolution) | .083" | (2.1 mm) |
| Weight w/ Air Motor w/ Electric Motor w/ Hydraulic Motor | 56 lbs 63 lbs 75 lbs | (25.4 kg) (28.6 kg) (34.0 kg) |
| Cutting Head Toolbit Slots | 3 | |
| Rotating Head Diameter | 9.160" | (232.7 mm) |
| Height Over Motor | 28.130" | (714.5 mm) |
| Machine Width | 10.130" | (257.3 mm) |
| Length over machine | 17.950" | (455.9 mm) |
| Minimum Air Power Requirement | 85 cfm 90 psi | (40.1 L/s) (621 kPa) |
| Minimum Electric Power | 20A@115V-50/60hz 10A@230V-50/60hz | |
| Hydraulic Power | 3 gpm - 15 gpm @ 1500 psi 15 gpm - 20 gpm @ 1000 psi | (.19 L/s - .94 L/s) @ 10342 kPa (.94 L/s - 1.265 L/s) @ 6894 kPa |
**For larger wall thickness, contact Tri Tool Inc. for heavier wall procedures
Documents
- Operating Manual - 208B
- Technical Specification - 208B W/ Air Motor
- Technical Specification - 208B W/ Electric Motor
- Technical Specification - 208B W/ Hydraulic Motor
Optional Accessories
| Property | Inches | Metric |
|---|---|---|
| ID Mounting: 2" - XX Mandrel Assembly | 1.500" - 1.650" | (38.1 mm - 41.9 mm) |
| Non-marking, Sleeve Mandrel (size specific) | 2.000" - 8.480" | (50.8 mm - 215.4 mm) |
| Flange Facer Kit | ||
| Elbow Mandrel Kit, Small | 1.630" - 2.560" | (41.4 mm - 65.0 mm) |
| Elbow Mandrel Kit | 2.510" - 8.400" | (63.8 mm - 213.3 mm) |
