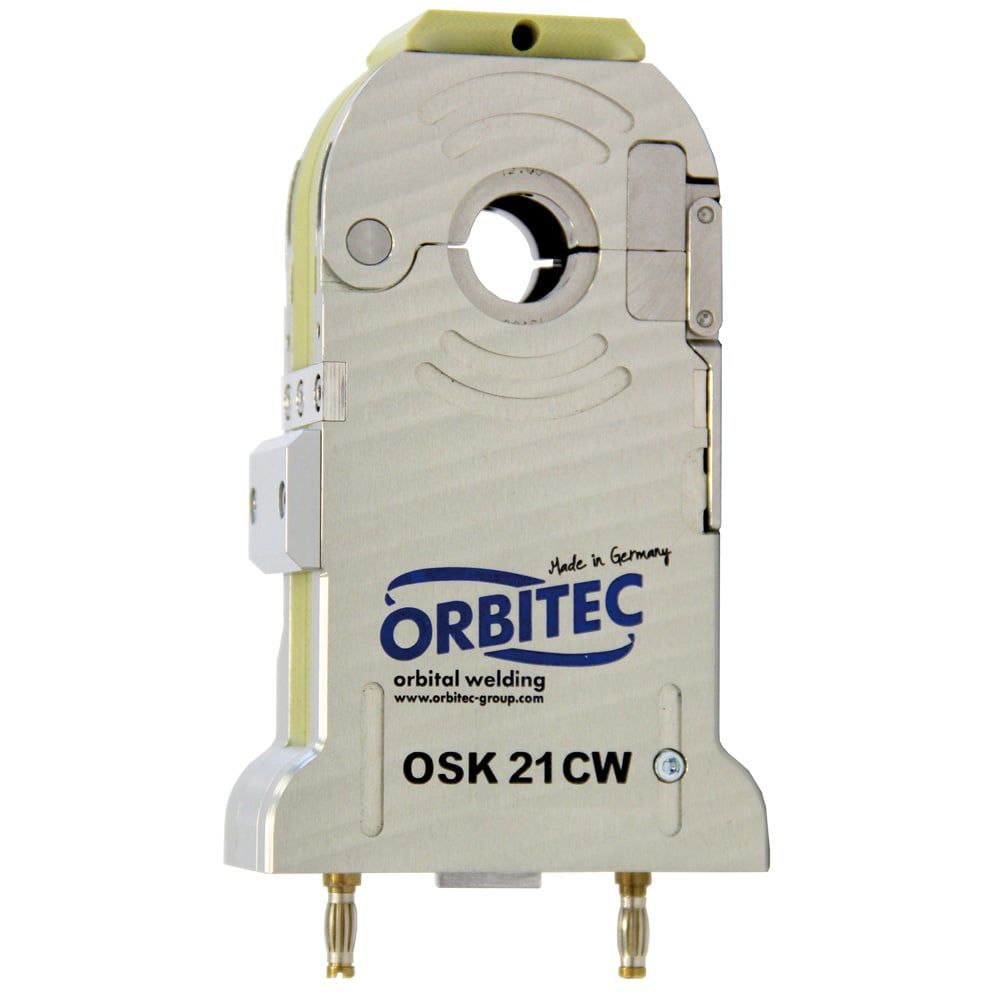

Our new generation of compact weld heads for high thermal capacities with a water-cooled collet housing and clamping levers.
- Weld head type: OSK 21 CW
- Tube size Range mm: OD 3,17 – 21,3 mm
- inch: 0,125″ – 0,839″
- Weight: 1,0 kg
- Item number: 1.0.2820 W
Enclosed orbital weld heads by Orbitec
Clever, customised with high precision
Our enclosed orbital weld heads stand for excellent welding results with a maximum customisation. For this reason, the implementation of Orbitec cassette-type weld heads meets the highest quality demands.
The Orbitec feed unit has a separated hose assembly and weld head, while multiple cassette weld heads can be operated with one feed unit only (exception: Microfitting weld head). This way a higher flexibility is obtained at reduced costs.
All Orbitec heads are also available in a gas or water coolant design and can be retrofitted as required (Exception: Microfitting weld head). But the gas coolant design of the heads fits the typical cassette welding head applications very well. When the thresholds of a cassette welding head are reached, the Orbitec cassette-type weld heads with water coolant design are recommended. Compared to other providers, the essential components for the heat input are sustainably cooled by a high water flow.
